General Purpose Transformers

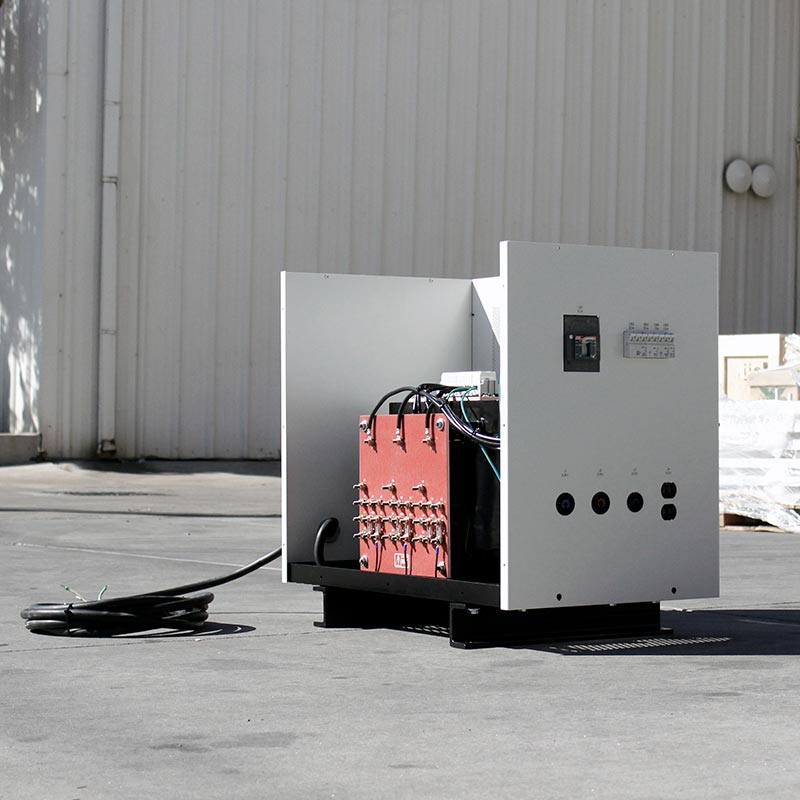

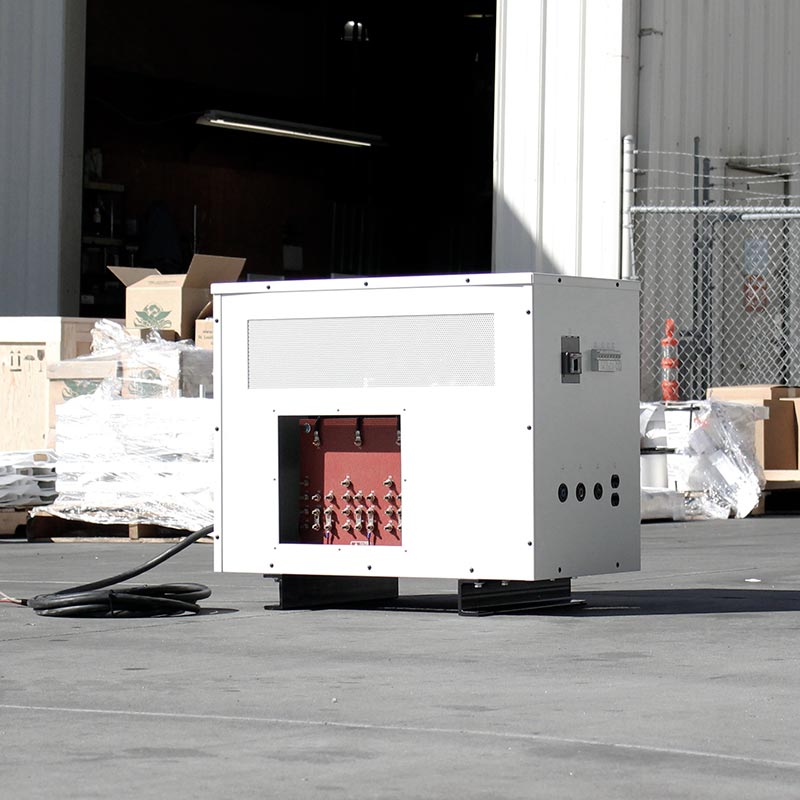

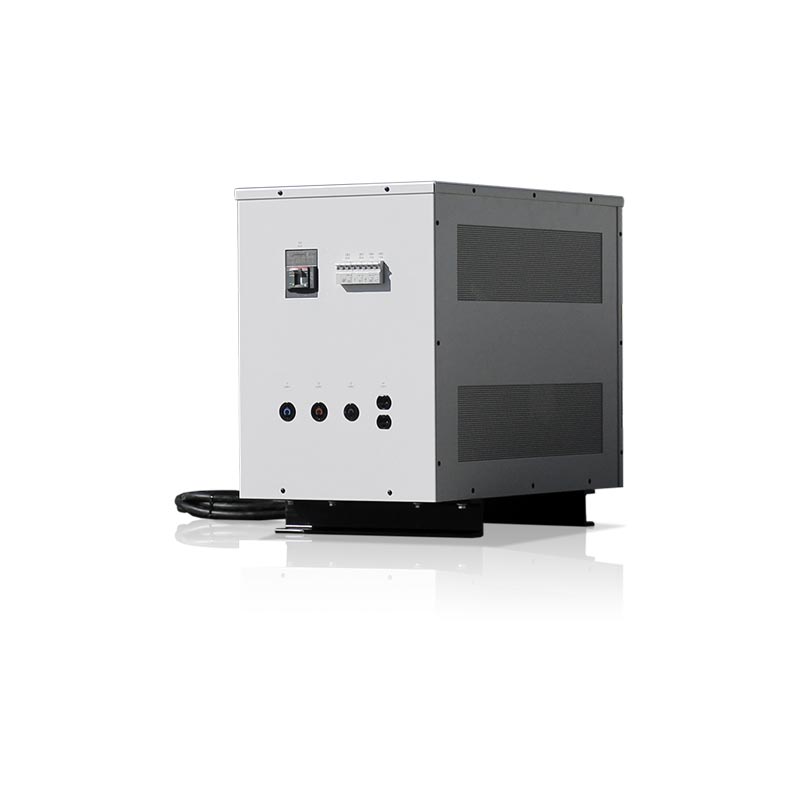

QTE 9445: 15kVA stand alone transformer with universal taps for use in medical 3D x-ray equipment

Power rating = 15kVA

Frequency = 50/60Hz

Number of Phases = 3

Primary = 180/200/220/240/380/400/420/440/480Vrms

Secondary 1 = 208Vrms @ 20Arms

Secondary 2 = 208Vrms @ 30Arms

Secondary 3 = 208Vrms @ 15Arms

Secondary 4 = 120Vrms @ 15Arms

Transformer:

Depth = 11.50"

Length = 21.50"

Height = 16.00"

NEMA1 enclosure:

Depth = 18.50"

Length = 32.00"

Height = 28.25"

Weight = 350lbs.

About this part:

  • This transformer is used in medical grade equipment intended to produce high definition 3D x-rays.
  • Intended for world wide use with universal multi-taps on the primary.
  • Multiple secondary receptacles for easy universal plug-ins. **This unit should still be installed by an electrician.
  • This transformer assembly is certified NRTL to UL 1561 and 508A. This transformer carries the CE Mark.
