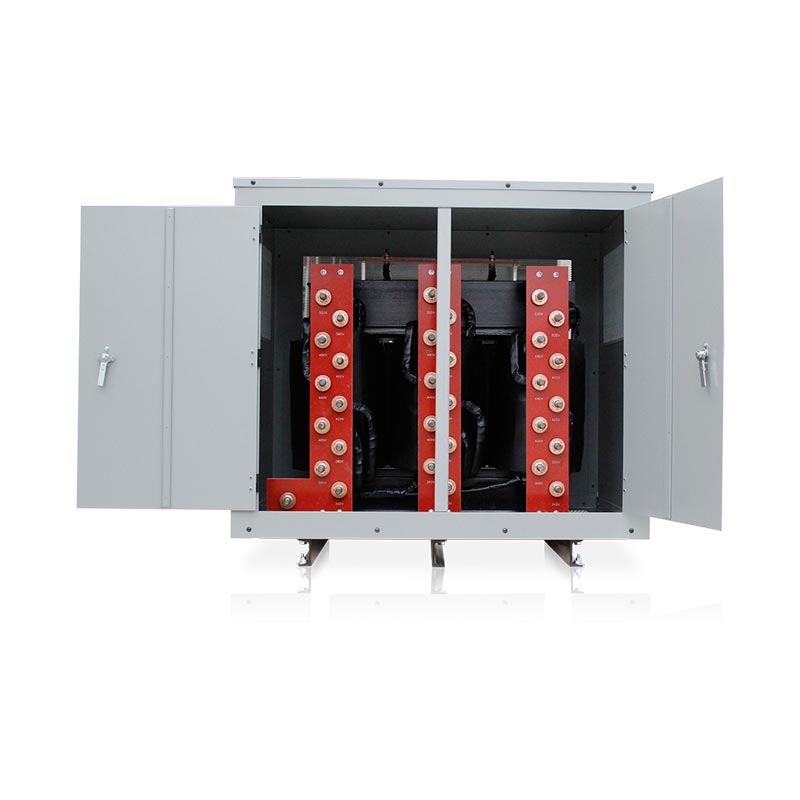

QTE 9808: 225kVA stand alone general purpose distribution transformer for industrial microwave solutions
Power rating = 225kVA
Frequency = 50/60Hz
Number of Phases = 3
Primary = 480Vrms Delta
Secondary = 340/360/380/400/420/440/460/480/500/520Vrms Wye @ 225kVA
Transformer
Depth = 22.02"
Length = 39.00"
Height = 33.12"
Weight = 2,525.00lbs.
With NEMA3R Enclosure
Depth = 35.00"
Length = 46.25" Ref.
Height = 42.75"
Weight = 2,750.00lbs.
About this part:
- This transformer is used as a multi-tap general purpose transformer for industrial microwave applications.
- This transformer has 10 secondary taps ranging from 340Vrms up to 520Vrms, each tap rated for full-load at 225kVA.
- This transformer is housed in a NEMA3R enclosure, which is suited for outdoor use but is not 100% sealed.
