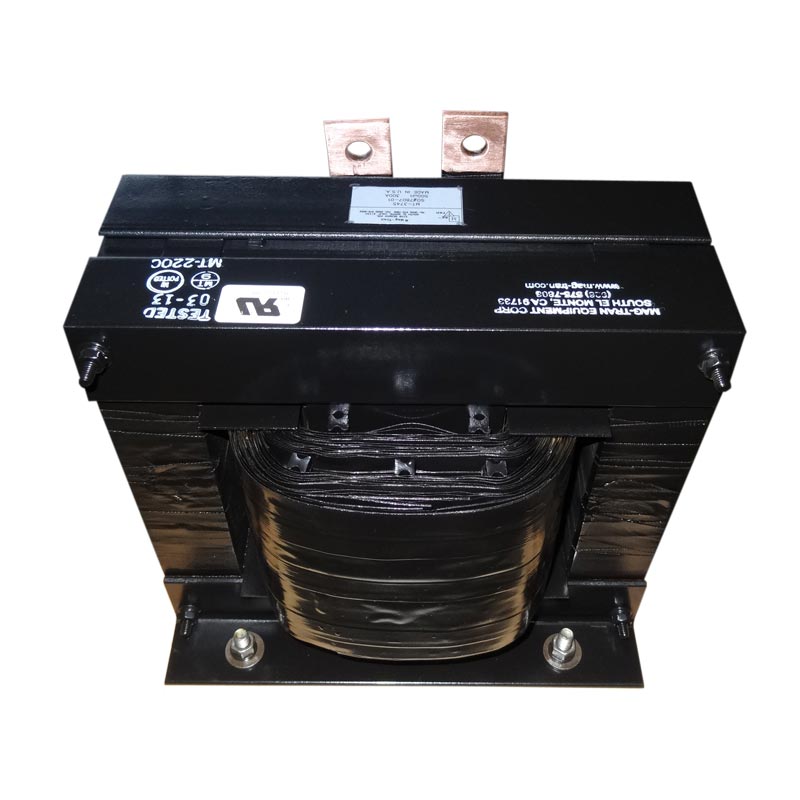

MT-3745: Choke used in an industrial linear accelerator
Inductance = 500uHy
Rated current = 300A
Max rated voltage = 1500VDC
No. of phases = 1
Ripple frequency = 1,000Hz
Approximate dimensions:
>Length = 12.00"
Width = 10.00"
Height = 14.00"
Weight = 170lbs.
