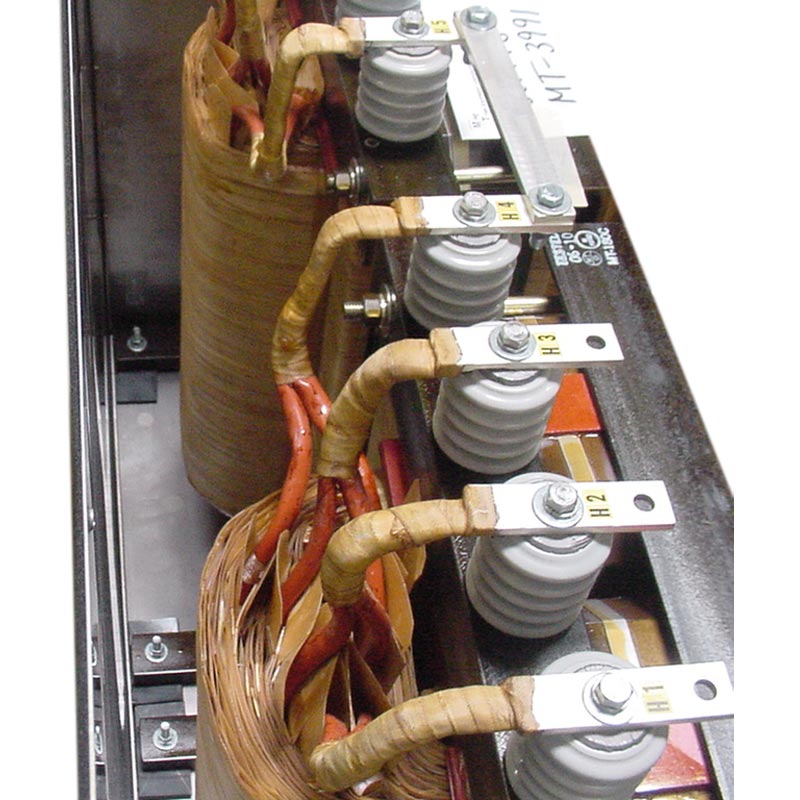

MT-3991: 2x 125kVA high voltage transformer with 2.5% regulation used in an AC Power source/Frequency inverter
Power rating = 2x 125kVA
Frequency = 400Hz ±10%
Number of Phases = 3
Primary = 135V/270V L-L
Secondary = 1,755V/3,510V L-L, 2,025V/4,050V L-L, 2,295V/4,590V L-L
Dielectric withstanding voltage: Primary-Secondary = 20kVrms
Regulation = 2.5%
NEMA4X enclosure dimensions:
Depth = 42.50"
Length = 27.00"
Height = 42.00"
Weight = 1,700lbs.
About this part:
- This unit is housed in a NEMA4X stainless steel enclosure
