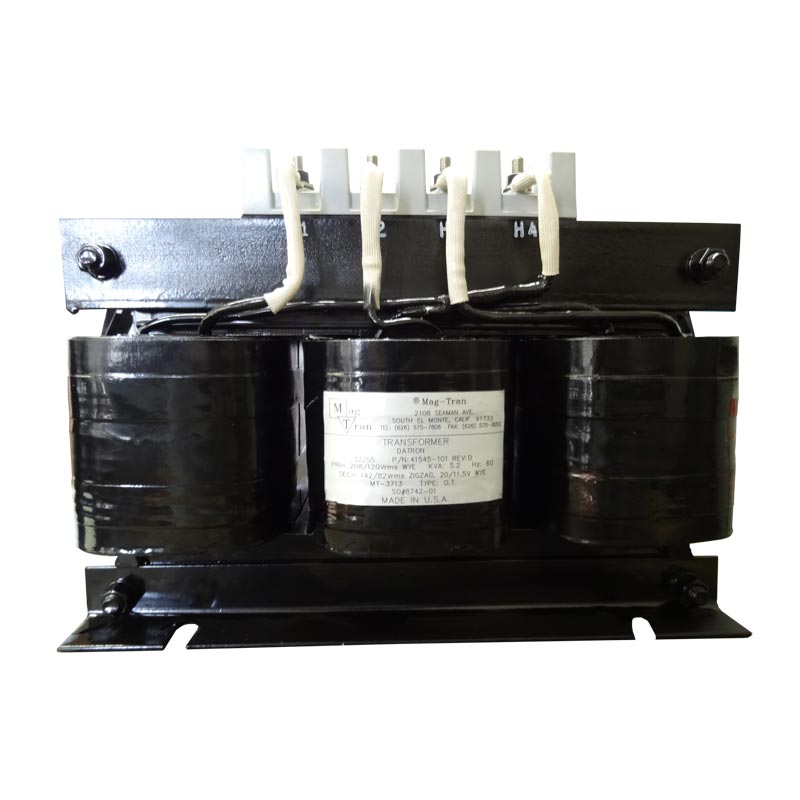

MT-3713: 5.2kVA zigzag transformer used in military communication equipment
Power rating = 5.2kVA
Frequency = 60Hz
Number of Phases = 3
Input = 208/120Vrms Wye
Output 1 = 142/82Vrms @ 20.4Arms Zigzag
Output 2 = 20/11.5Vrms @ 4.0Arms Wye
Depth = 13.50"
Length = 10.00"
Height = 9.50"
Weight = 95lbs.
