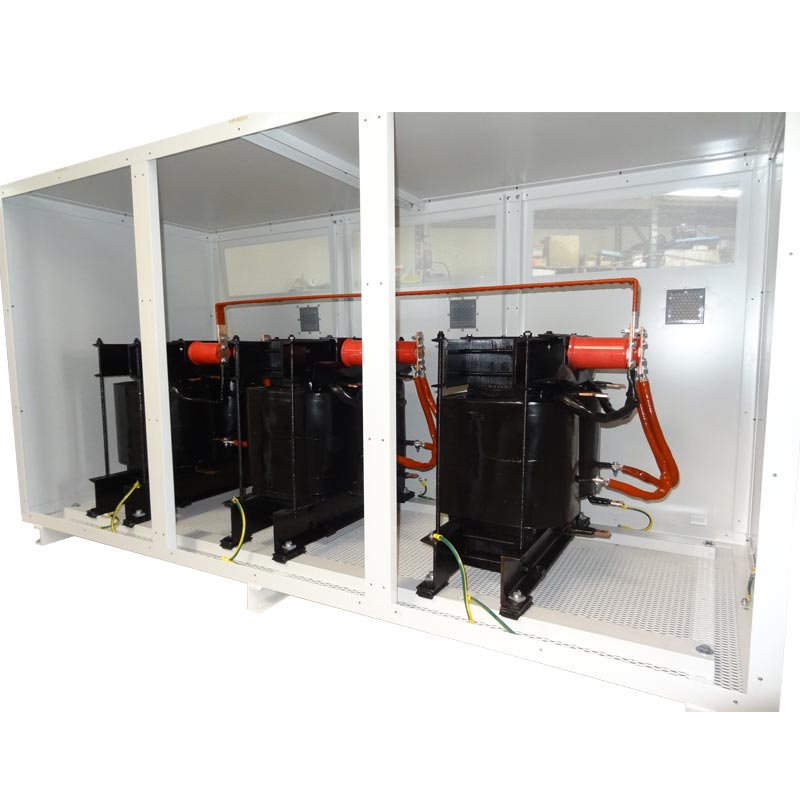

MT-4921: Inductor assembly, part used in high speed rail application
Inductance = 2.0/1.5/1.0/0.5mH
Frequency = 60-1,000Hz
Number of phases = 1
Rated current = 307A
Input voltage = 4,160Vrms max @ any frequency
Dielectric withstanding voltage = 31kVrms
BIL rating = 60kV
About this part:

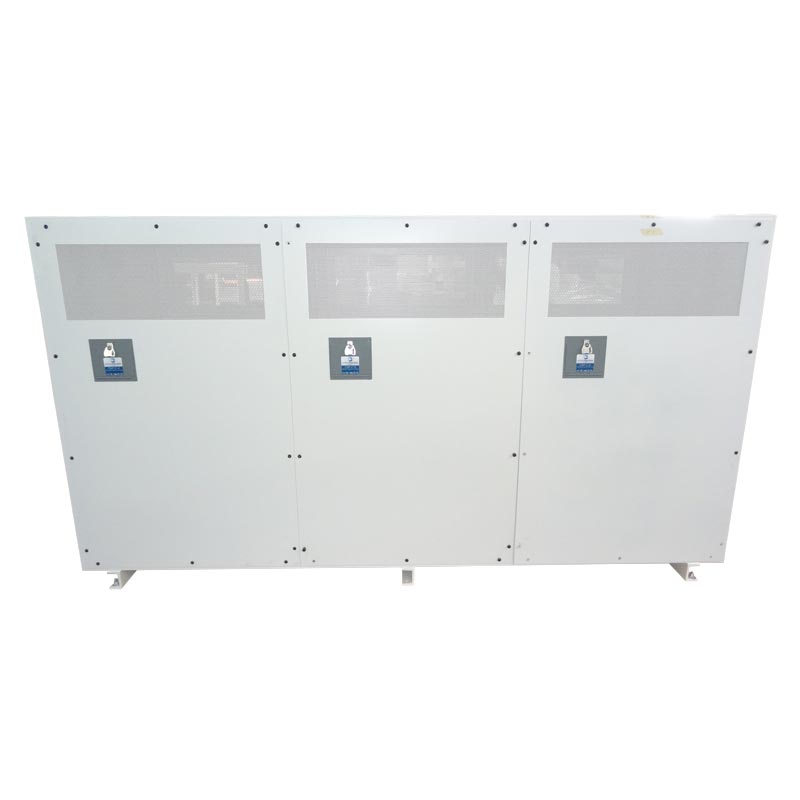

- Housed in a NEMA1 enclosure
