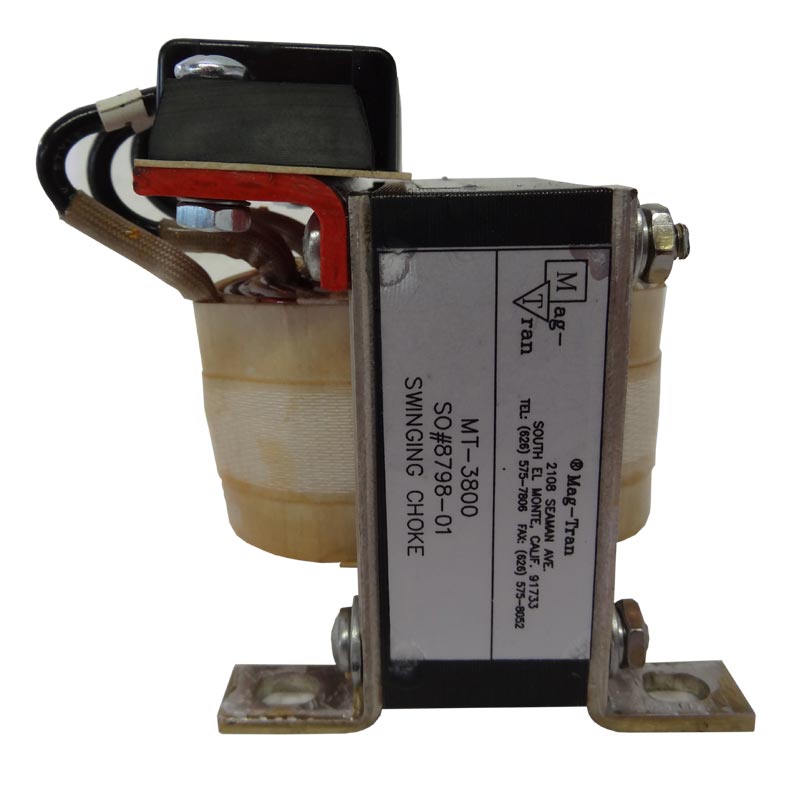

MT-3800: Swinging choke
Inductance (series) = 8.0/100mH
Inductance (parallel) = 2.0/25mH
Rated current (series) = 2.5ADC
Rated current (parallel) = 5.0ADC
Resistance (series DCR) ≤ 0.6Ohms
Resistance (parallel DCR) ≤ 0.15Ohms
No. of phases = 1
Approximate dimensions:
Length = 3.375"
Width = 3.00"
Height = 3.50"
Weight = 10lbs.
