MT-4931: 100kVA high voltage transformer with 10% impedance used in an energy production and distribution system
Power rating = 100kVA
Frequency = 60Hz
Number of Phases = 3
Primary = 480Vrms Wye L-L, ±5, 10% taps
Secondary = 4,700Arms Delta L-L @ 12.3Arms
Dielectric withstanding voltage: Primary = 4kVrms, Secondary = 34kVrms
Impedance = 10%

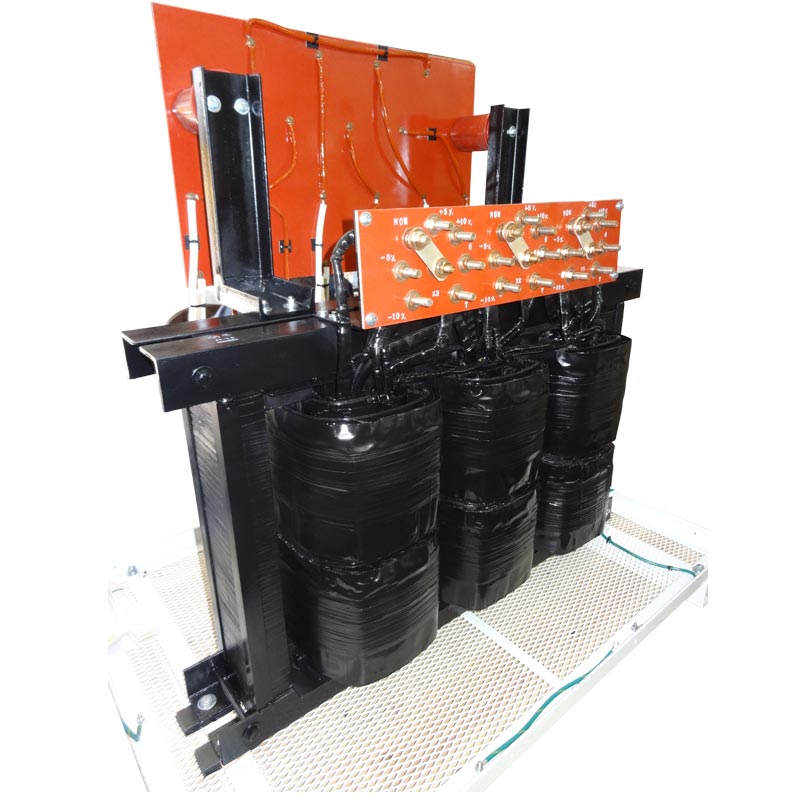

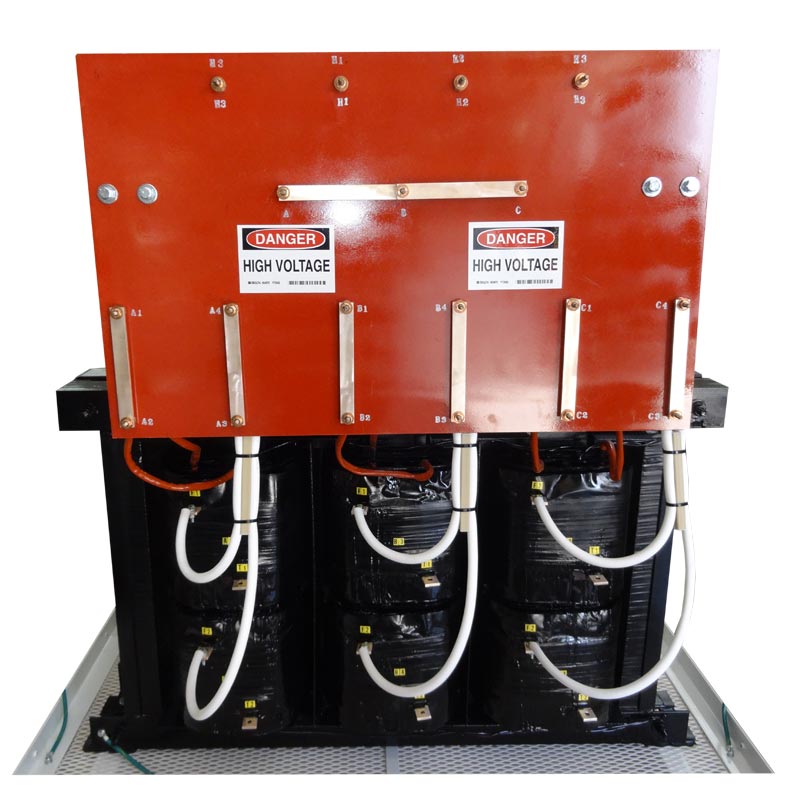

Transformer:
Depth = 11.50"
Length = 21.50"
Height = 16.00"

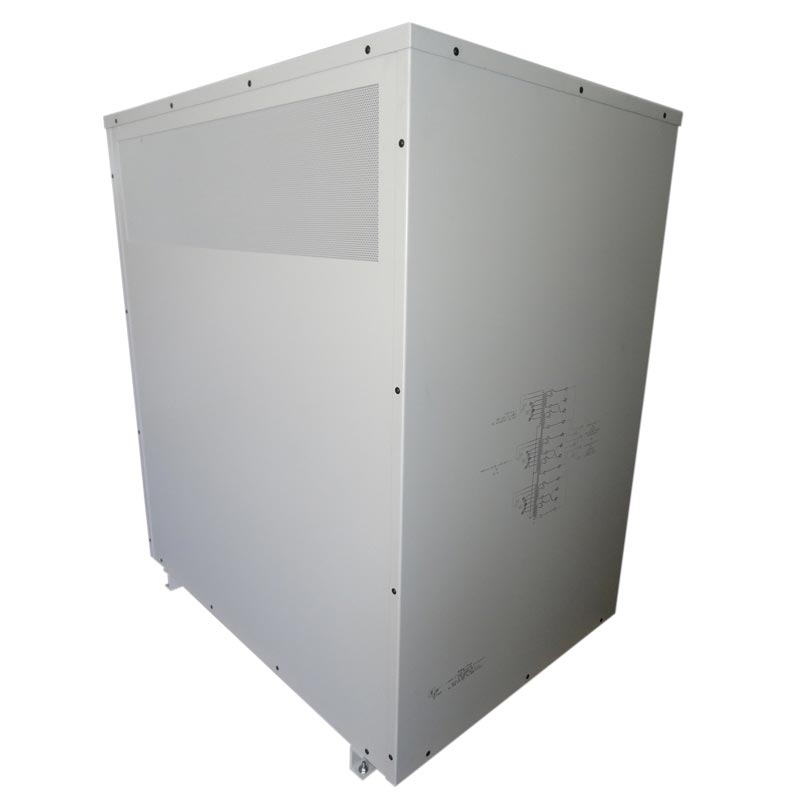

NEMA1 enclosure:
Depth = 18.50"
Length = 32.00"
Height = 28.25"
Weight = 350lbs.
About this part:
- This unit is housed in a NEMA1 enclosure
