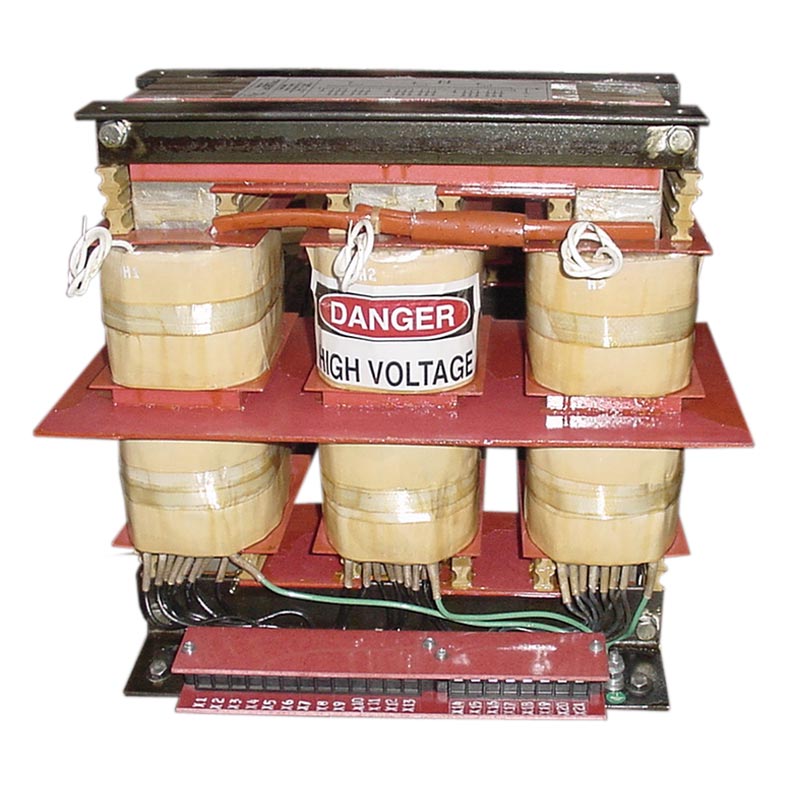

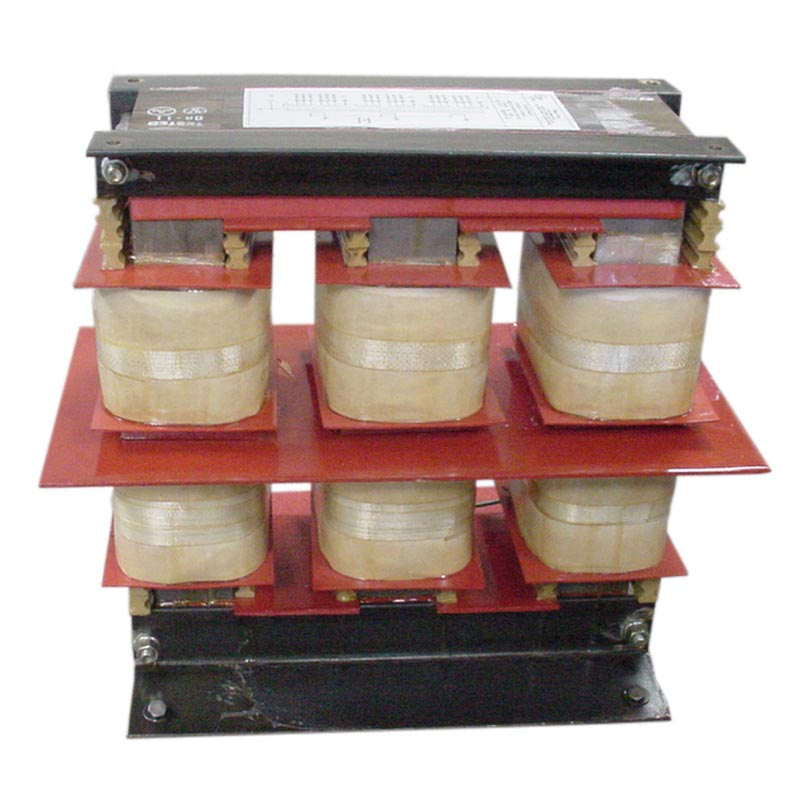

MT-4513: 5.8kVA high voltage transformer used in government laboratory testing
Power rating = 5.8kVA
Frequency = 60Hz
Number of Phases = 1
Primary = 2,300Vrms
Secondary = 200/400Vrms, 220/440Vrms, 230/460Vrms
Dielectric withstanding voltage: Primary = 3.75kVrms, Secondary = 11kVrms
Impedance = 1,000-1,100Ohms
Transformer dimensions:
Depth = 17.00"
Length = 9.25"
Height = 14.75"
Weight = 125lbs.
