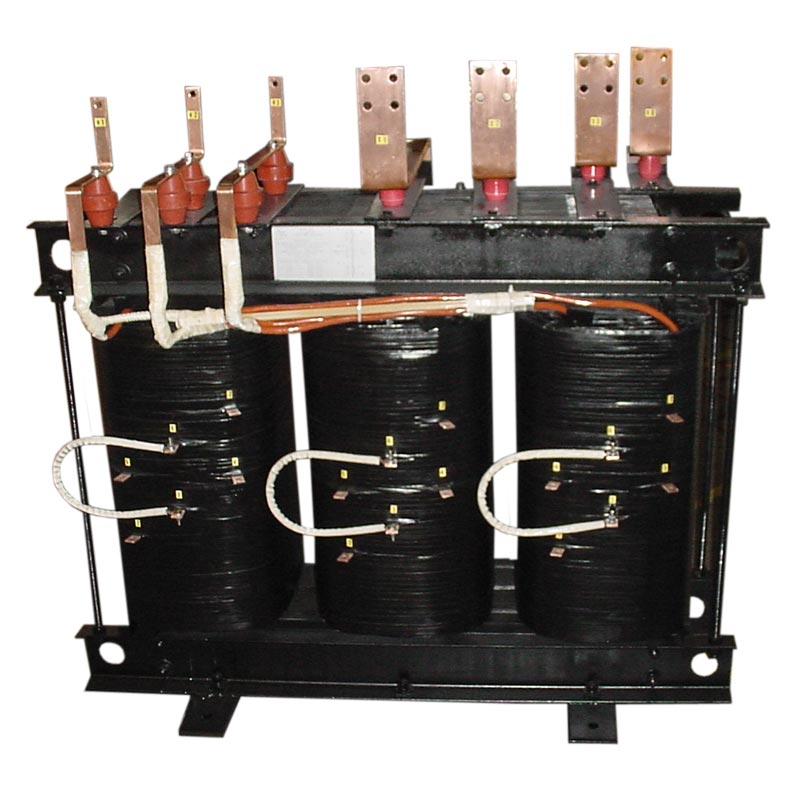

MT-4654: 500kVA open frame high voltage transformer with 12kV isolation used to meet special project requirements of an electrical equipment supply company
Power rating = 500kVA
Frequency = 60Hz
Number of Phases = 3
Primary = 4,800Vrms Delta ±2.5%, 5% taps
Secondary = 208/120Vrms Wye @ 462.6Arms
Dielectric withstanding voltage: Primary = 12kVrms, Secondary = 2.5kVrms
Transformer:
Depth = 26.75"
Length = 49.50"
Height = 36.50"
Weight = 3,250lbs.
About this part:
- This unit is housed in a NEMA1 enclosure
