High Voltage Transformers

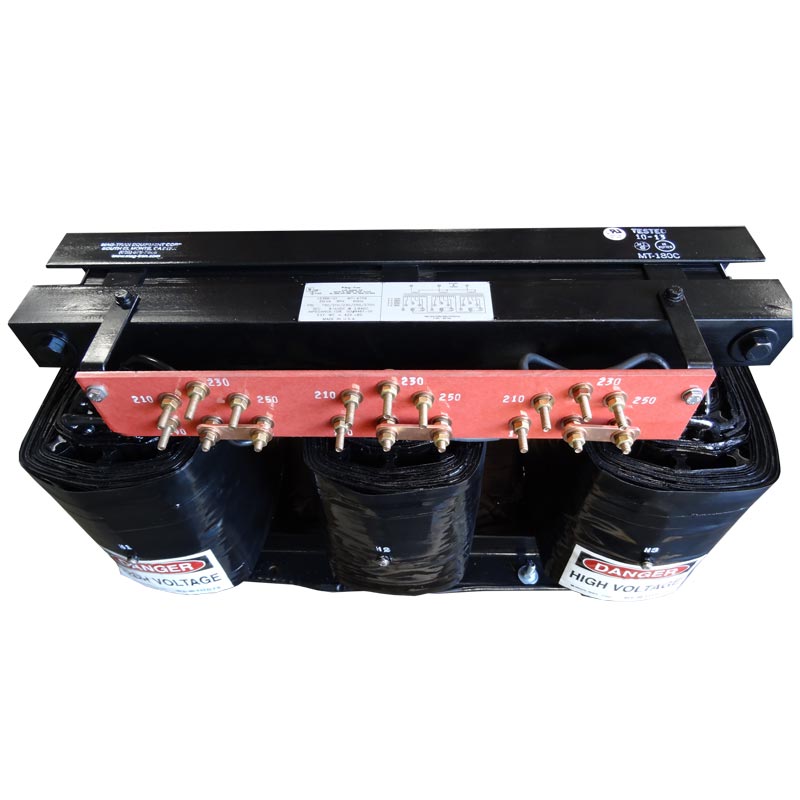

MT-4709: 31kVA high voltage transformer used in oil-rig drilling and production equipment

Power rating = 31kVA

Frequency = 60Hz

Number of Phases = 3

Primary = 190/210/230/250/270Vrms

Secondary = 8.1kVDC @ 3.8ADC from full wave 3PH bridge

Dielectric withstanding voltage: Primary = 2.5kVrms, Secondary = 15kVrms

Impedance = 10%

Transformer dimensions:

Depth = 13.50"

Length = 28.50"

Height = 16.00"

Weight = 425lbs.
