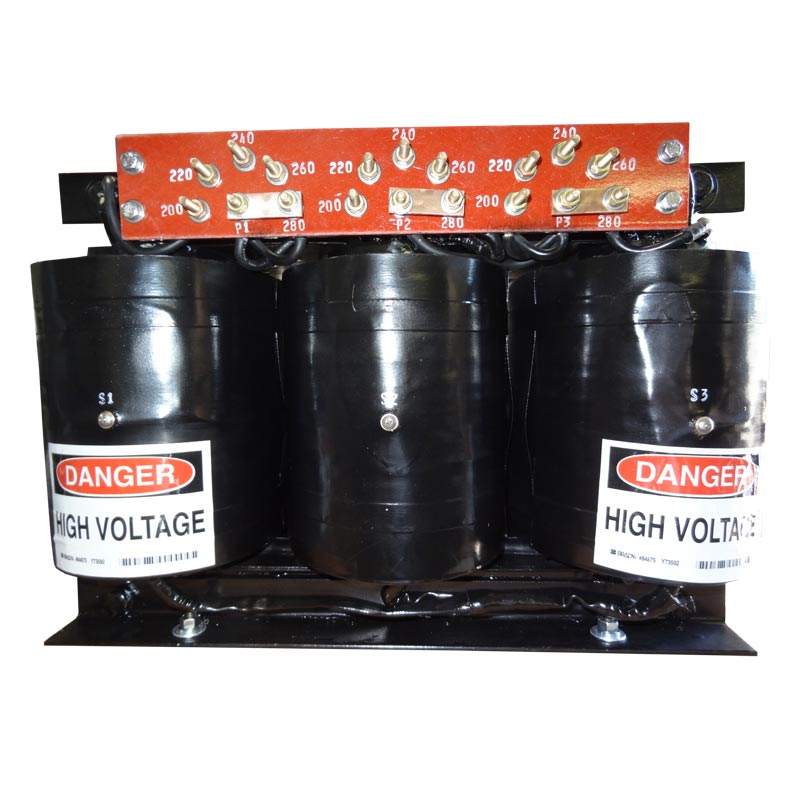

MT-4732: 36kVA high voltage transformer
Power rating = 36kVA
Frequency = 60Hz
Number of Phases = 3
Primary = 200/220/240/260/280Vrms
Secondary = 5,931Vrms @ 3.51Arms, 8,000VDC @ 4.3ADC
Dielectric withstanding voltage: Primary = 2.5kVrms, Secondary = 12kVrms
Impedance = 10%
Transformer dimensions:
Depth = 12.00"
Length = 23.25"
Height = 15.00"
Weight = 400lbs.
