Isolation Transformers

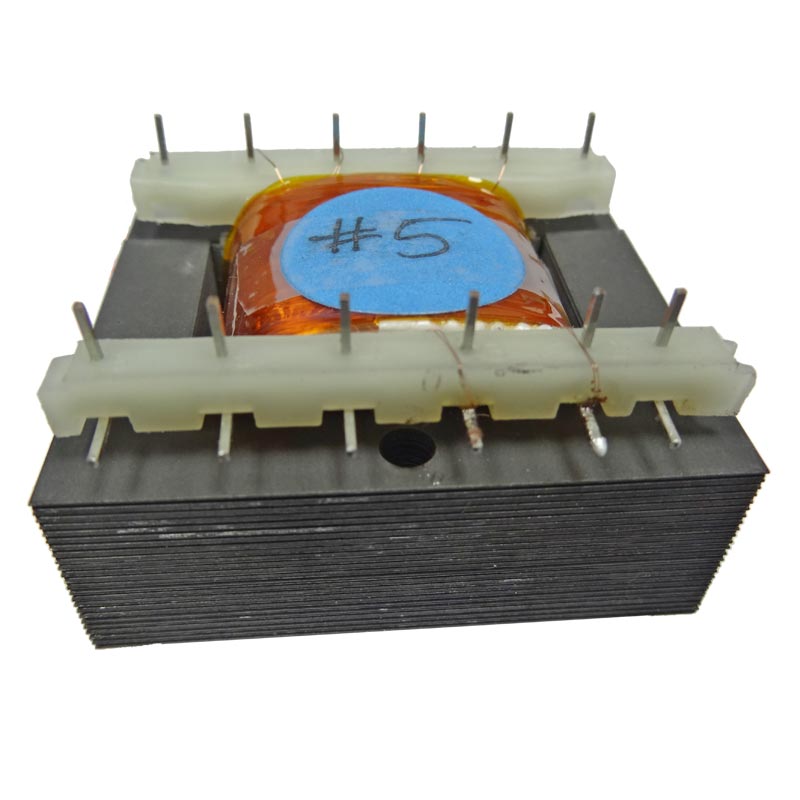

MT-4845: a 79VA Isolation Transformer used in a commercial electronic charging system.

Power rating = 79VA

Frequency = 60Hz

Number of Phases = 1

Primary = 480Vrms

Secondary = 2x 480Vrms @ 0.82mA

Impedance = 1,000-1,100Ohms

Dielectric withstanding voltage(s) = 3.5kVDC for 1sec, 2.5kVrms for 1sec

Depth = NA

Length = NA

Height = NA

Weight = NA

About this part:

  • This unit carriers the rating for NRTL to UL 506 and the CE Mark under license number EN 60076. A copy of our certifications can be found here.
